GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts

Name: GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts
Brand: XGFH
Price: 0.1 USD

Buy cheap GB 6184 Stainless Steel Metric Nuts Spring Stop Metal Insert Lock Nuts product

Brand Name : XGFH

Model Number : GB6184

Certification : ISO9001,EN10204 3.1Certificate

Place of Origin : China

MOQ : 100pcs

Price : 0.1-2.5usd/pc

Payment Terms : T/T, L/C

Supply Ability : 100000pcs per month

Delivery Time : 5-15 work days

Packaging Details : 25kg per carbon box and then pallet.

Standard : GB6184

Name : Hex Lock Nuts

Material : Stainless steel 316

Grade : A4-80

Finish : Clean and Bright

Type : Chamfer

Wrench : Hex

Thread : Coarse

Contact Now

Metric Stainless Steel Spring-Stop Locknuts Metal Insert Lock Nuts

Product Description:

For a secure hold where chemicals are a concern, these stainless steel locknuts—also known as Fuji locknuts—have a spring that creates tension when tightened. Reuse them without losing holding power like you do with nylon-insert locknuts. Made of metal, they'll stand up to high temperatures and vibration. They're designed for easy installation and removal. May be mildly magnetic.

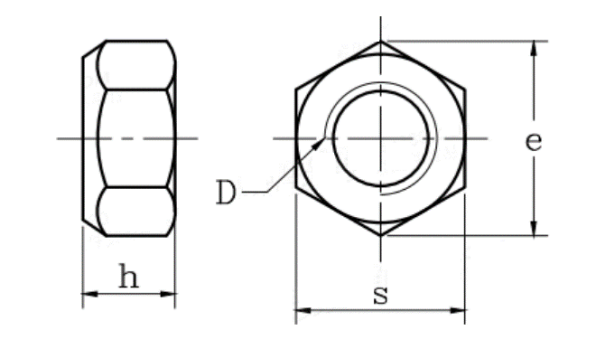

Product Drawing:

Prevailing Torque Type All-Metal Hexagon Nuts
GB/T6184-2000

d(mm)	P(mm)	h(mm)		s(mm)
d(mm)	P(mm)	min	max	min	max
M5	0.8	4.8	5.3	7.78	8
M6	1	5.4	5.9	9.78	10
M8	1.25	6.44	7.1	12.73	13
M10	1.5	8.04	9	15.73	16
M12	1.75	10.37	11.6	17.73	18
M14	2	12.1	13.2	20.67	21
M16	2	14.1	15.2	23.67	24
M18	2.5	15.01	17	26.16	27
M20	2.5	16.9	19	29.16	30
M22	2.5	18.1	21	33	34
M24	3	20.2	23	35	36
M30	3.5	24.3	26.9	45	46
M36	4	29.4	32.5	53.8	55
